The Fronius World of Storage solutions. Individual solutions for every customer

The storage path to maximum energy independence

Fronius offers an array of bespoke storage solutions designed to satisfy every need – from laying the foundations for a future storage solution to installing a fully integrated system: the storage solutions with Fronius hybrid inverter and Fronius Ohmpilot.

The path to maximum self-consumption can be compared to climbing a mountain.

At the base is a hybrid inverter, the core of every storage solution. At the summit there is maximum independence with a DC-coupled battery storage system, heat storage system and grid back-up. We have a range of options for our customers to find their perfect storage solution along the way.

STORAGE SOLUTIONS FOR MORE INDEPENDENCE

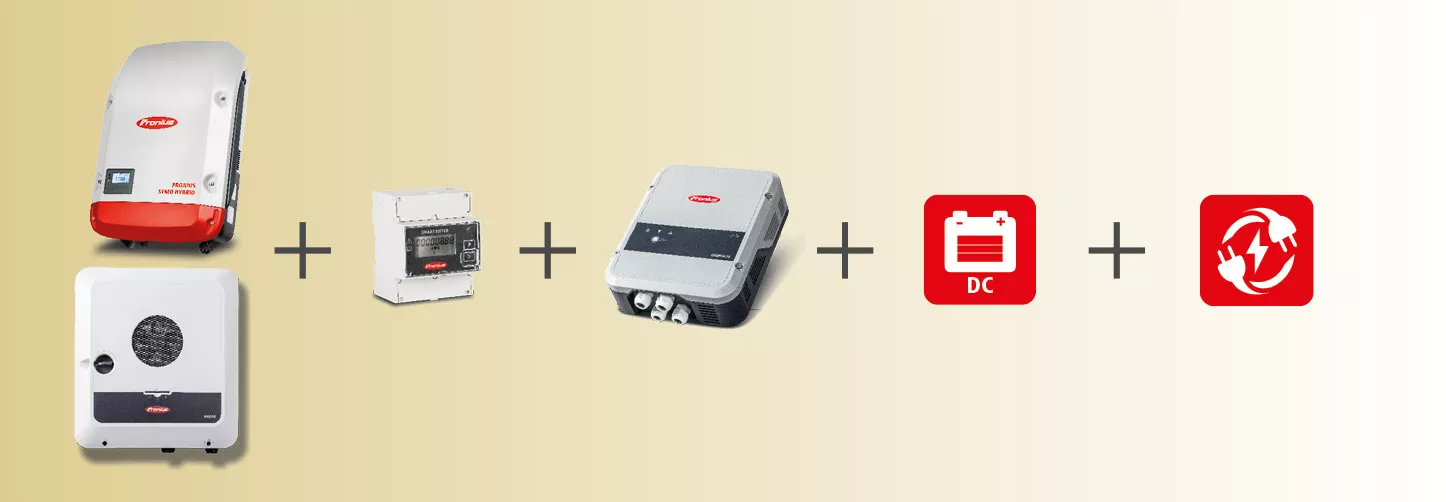

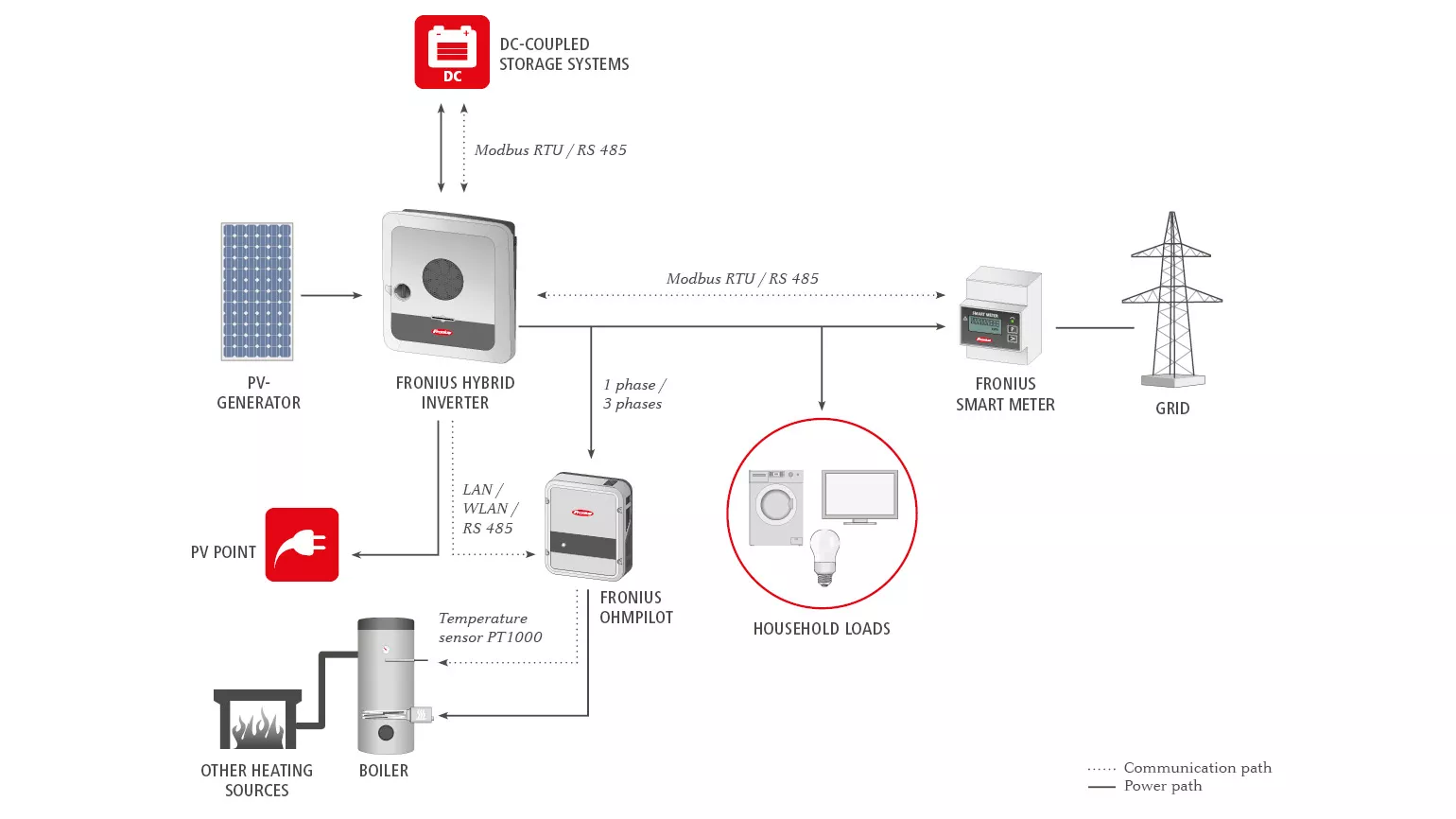

DC-coupled battery storage system with thermal storage system and grid back-up function

The complete system with grid back-up function increases self-consumptionto up to 100 %, thus enabling maximum independence.

Products used:
/ GEN24 Plus or Fronius Symo Hybrid
/ Fronius Smart Meter
/ Fronius Ohmpilot
/ battery storage DC-coupled

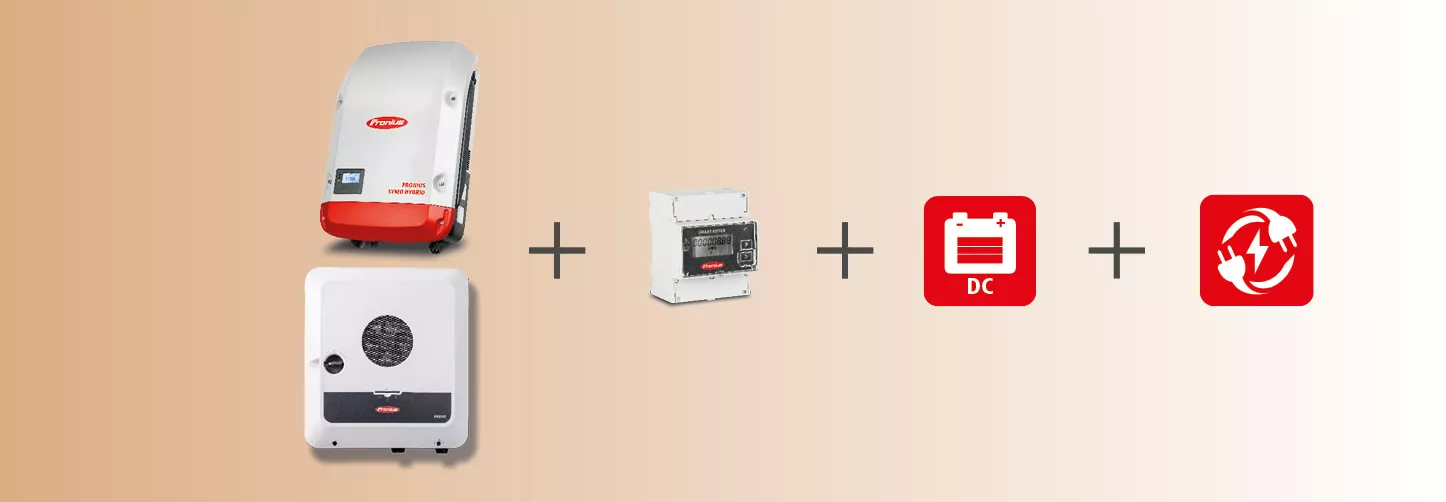

DC-coupled battery storage system with grid back-up function

The storage solution with full back-up function is infused with proven quality.

Products used:
/ GEN24 Plus or Fronius Symo Hybrid
/ Fronius Smart Meter
/ battery storage DC-coupled

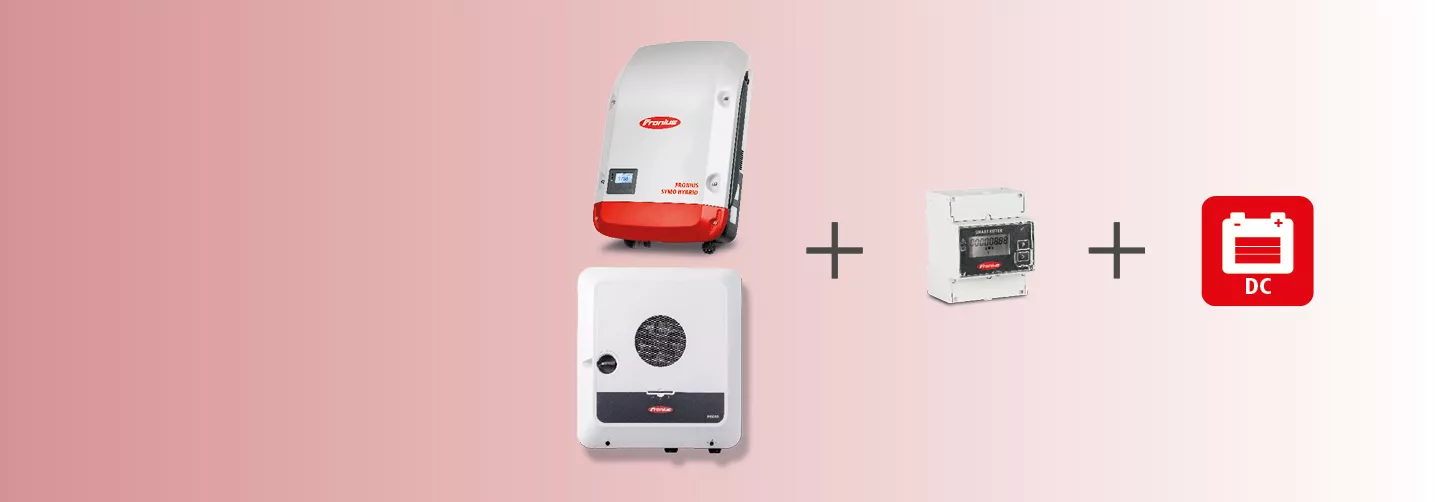

DC-coupled battery storage system

The Fronius Symo Hybrid inverter can be combined with the LG Chem RESU, BYD Battery Box HV or BYD Battery-Box Premium HVM. The GEN24 Plus is compatible with BYD Battery-Box Premium HVS/HVM and create create a competitively priced storage solution for quality- and cost-conscious system owners.

Products used:
/ GEN24 Plus or Fronius Symo Hybrid
/ Fronius Smart Meter
/ battery storage DC-coupled

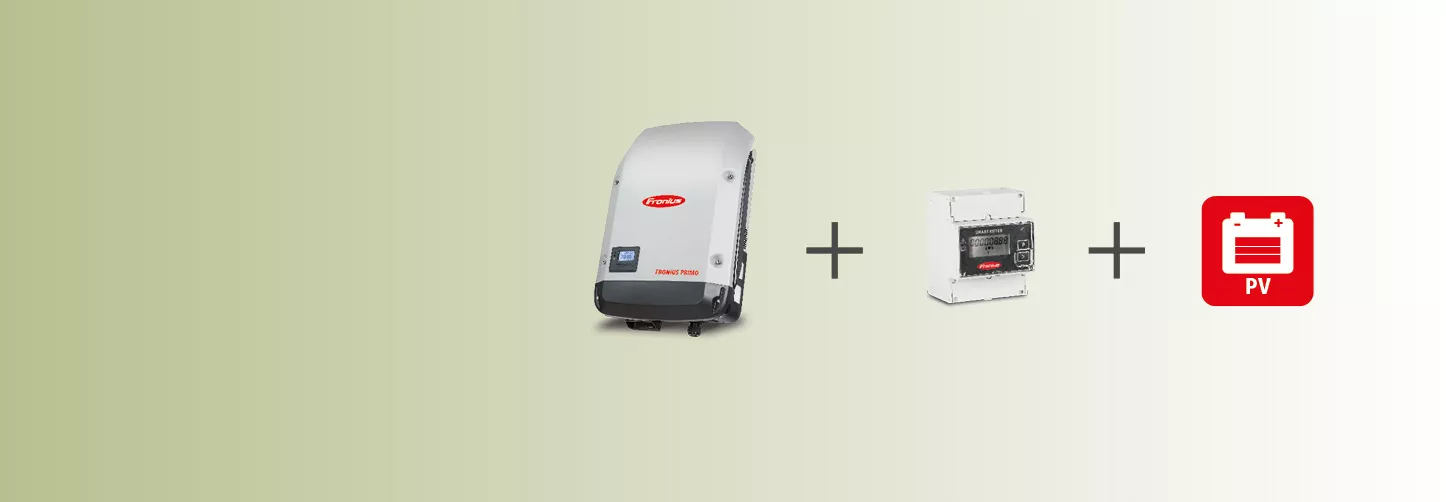

PV string-coupled battery storage system

Any Fronius inverter* combined with a battery from Solarwatt createsthe perfect storage solution for single-phase markets.

* Exception: Fronius hybrid inverters

Products used:
/ Fronius Symo
/ Fronius Smart Meter
/ battery storage PV string-coupled

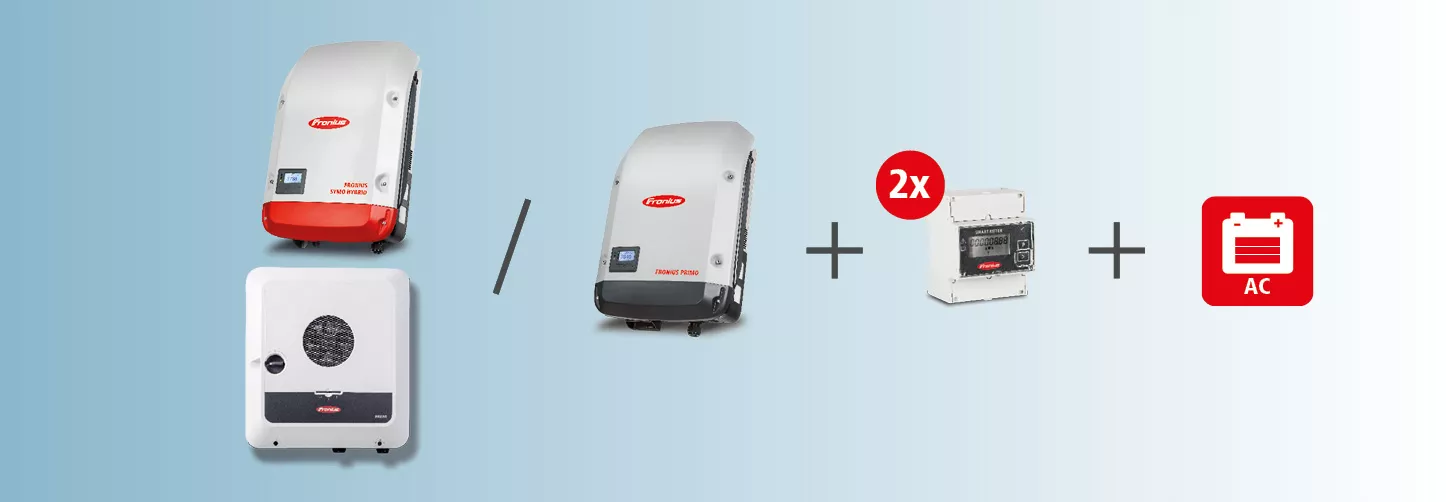

AC -coupled battery storage system

The inverters can be combined with an AC-coupled storage system guaranteeing straightforward integration into Fronius Solar.web system monitoring.*

* AC battery visualisation coming in 2020

Products used:
/ GEN24 Plus or Fronius Symo Hybrid or Fronius Symo
/ 2 x Fronius Smart Meter
/ battery storage AC-coupled

Thermal storage system

The Fronius Ohmpilot not only maximises your rate of self-consumption by heating water, but it is also the simplest storage solution from Fronius.

Products used:
/ GEN24 Plus or Fronius Symo Hybrid
/ Fronius Smart Meter
/ Fronius Ohmpilot

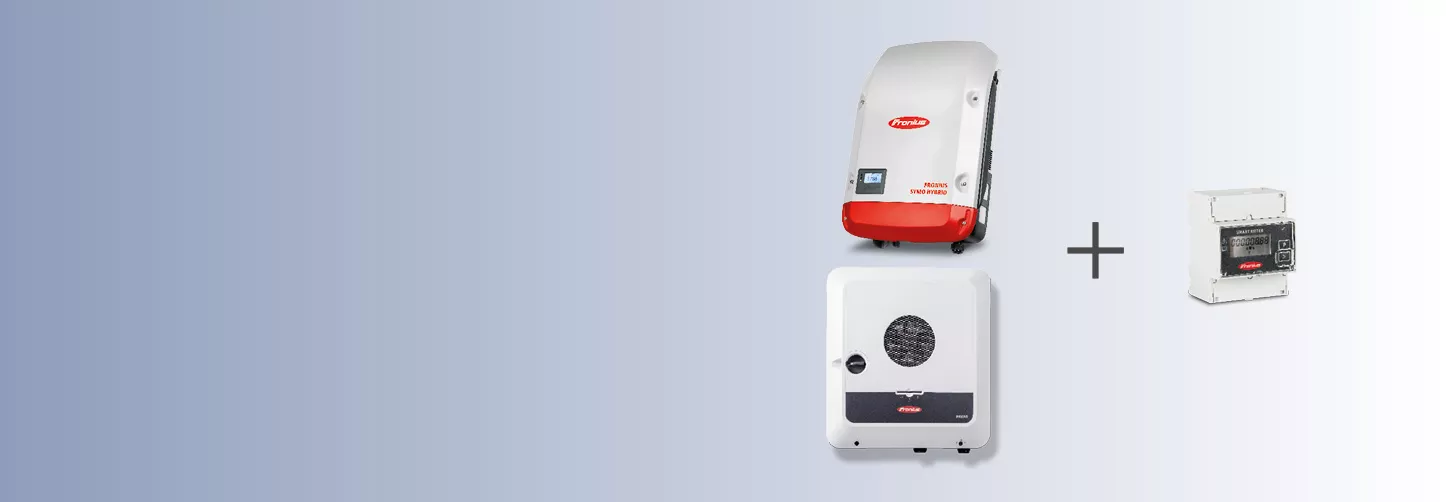

Storage system ready with hybrid inverters

The hybrid inverters, when combined with a Fronius Smart Meterand Solar.web, provide an energy consumption overview and lay the groundwork for future storage systems.

Products used:
/ GEN24 Plus or Fronius Symo Hybrid
/ Fronius Smart Meter

STORAGE SOLUTIONS COMPARED

Functions / properties	DC-coupled battery storage system with thermal storage system and grid back-up function		DC-coupled battery storage system with grid back-up function		PV string-coupled battery storage system	AC -coupled battery storage system	Thermal Storage System	Storage system ready with hybrid inverters
	*BYD Battery-Box Premium HVS/HVM*	LG Chem RESU	*BYD Battery-Box Premium HVS/HVM*	LG Chem RESU	*Solarwatt*
Battery Storage Solution	✓	✓	✓	✓	✓	✓
Thermal Storage Solution	✓	✓					✓
Grid Back-up Function	✓		✓			Under certain conditions *	Under certain conditions *	Under certain conditions *
Degree of self-sufficiency	Very high	Very high	High	High	High	High	Medium	Low

*The grid back-up function varies between each inverter and/or battery

Find out more about the compatibility of inverters and storage devices here.

PRODUCTS FOR YOUR STORAGE SOLUTION

PRODUCT OVERVIEW

The following Fronius products will help you achieve maximum independence:

GEN24 Plus

The Fronius GEN24 Plus is the versatile hybrid inverter with integrated back-up power and thus offers the best flexible solution for solar energy supply.

GEN24 Plus

Fronius Symo Hybrid

The Fronius Symo Hybrid is the heart of the 24 hours of sun storage solution

Fronius Symo Hybrid

Fronius Smart Meter

The Fronius Smart Meter is a bidirectional meter that optimises self-consumption and records the household's load curve.

Fronius Smart Meter

Fronius Ohmpilot

The Fronius Ohmpilot is a consumption regulator designed to use excess solar power to heat water.

Fronius Ohmpilot

Compatible Batteries

Fronius hybrid inverters can be combined with batteries of leading manufacturers and thus provides competitively priced storage solutions for quality- and cost-conscious system owners.

Compatible Batteries

GEN24 Plus

The Fronius GEN24 Plus is the versatile hybrid inverter with integrated back-up power and thus offers the best flexible solution for solar energy supply.

GEN24 Plus

Fronius Symo Hybrid

The Fronius Symo Hybrid is the heart of the 24 hours of sun storage solution

Fronius Symo Hybrid

Fronius Smart Meter

The Fronius Smart Meter is a bidirectional meter that optimises self-consumption and records the household's load curve.

Fronius Smart Meter

Fronius Ohmpilot

The Fronius Ohmpilot is a consumption regulator designed to use excess solar power to heat water.

Fronius Ohmpilot

Compatible Batteries

Fronius hybrid inverters can be combined with batteries of leading manufacturers and thus provides competitively priced storage solutions for quality- and cost-conscious system owners.

Compatible Batteries
