The Outdoor Batterycharging solution Fronius EnergyHUB

The Fronius EnergyHUB is the flexible and mobile outdoor charging solution

Der Fronius EnergyHub ist der Flexible Container um ihre Tracktionsbatterien auch ausserhalb ihrer Lagerhalle zu laden.

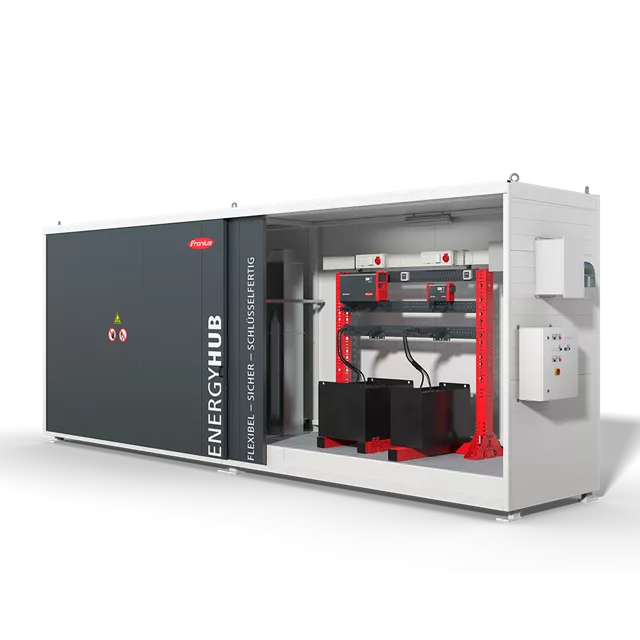

The Fronius Energy Hub is a mobile outdoor battery charging station that is efficiently installed in a special container. This makes it the first choice if, for example, you need additional battery charging capacity and there is not enough space in your hall to expand your existing charging infrastructure.

The Energy Hub is specially designed for outdoor use, it can withstand the most adverse conditions and is also available in a fireproof version. The mobile charging station is delivered to you as a turnkey solution, so it is ready for immediate use after connection to your power supply system. The wide range of configuration options allows you to adapt the Energy Hub perfectly to your requirements.

Unexpected capacity constraints?

No problem with the Fronius Energy Hub. Get fast and easily additional capacity outdoors and free up your space. Scale performance and capacity flexibly, time and cost-effective.

Fast and easy expansion of the charging room?

With the Fronuis Energy Hub you can now charge your LI-ION Batteries.

Loading li-ion batteries outdoor?

From now on you can charge and change batteries outdoors too. The Fronius Energy Hub comes equipped with both a heating system for the winter and a cooling system for the summer. Flexible and ready to use.

Your benefits with an Outdoor battery charging container

Flexible and ready to use

The Fronius Energy Hub comes turnkey. It is ready to use. You can charge and change your batteries immediately. Depending on your requirements, whether you are looking for a charging station with interchangeable module or want our fast visual identification Cool Battery Guide Easy on the outside of the Energy Hub, we tailor your customized solution for safe outdoor operations.

Safety and standard assessment.

The Fronius Energy Hub complies with the current safety regulations and is in accordance with the safety distances according to EN 62485-3. Optionally available as fire protection class REI 90.

Intelligent exhaust air and monitoring sensor.

Explosive gas explosions are no longer an issue for you. The intelligent exhaust air and monitoring sensors of the Fronius Energy Hub turns off automatically, when exhaust air requirements are exceeded. For your own safety.

Your full solution.

We plan and deliver your ready-to-use Fronius Energy Hub. We take care of the installation and safety-related approvals. Our service technicians are also happy to take care of the regular service and maintenance. Ask us.

Configuation that suits your needs

In order to be able to optimally adapt this outdoor charging station to your wishes, there is a wide range of equipment variants. Thanks to our decades of expertise in the field of charging station planning, we can optimally adapt your Energy Hub to make outdoor charging as cost- and time-efficient as possible.

Lockable smooth-running sliding doors Allow easy access to the batteries and chargers

Heating To reach the optimal charge even at winterly outdoor temperatures

Battery stands or roller beds With underlying acid drip trays enabling a lateral or horizontal change

Lighting Enabling battery changes at all times

Intelligent air exhaust and monitoring sensor Minimizes your risk that the container holds oxyhydrogen gas

Easy accessible energy control Weatherproof electrical box for safe supplies and easy access on the outer side of the container

Lockable smooth-running sliding doors

Allow easy access to the batteries and chargers

Heating

To reach the optimal charge even at winterly outdoor temperatures

Battery stands or roller beds

With underlying acid drip trays enabling a lateral or horizontal change

Lighting

Enabling battery changes at all times

Intelligent air exhaust and monitoring sensor

Minimizes your risk that the container holds oxyhydrogen gas

Easy accessible energy control

Weatherproof electrical box for safe supplies and easy access on the outer side of the container

Awing To keep your employees dry and be ready for all weather conditions

Battery water treatment Battery water is expensive to buy and difficult to transport in canisters or IBCs. Create your own battery water stressless

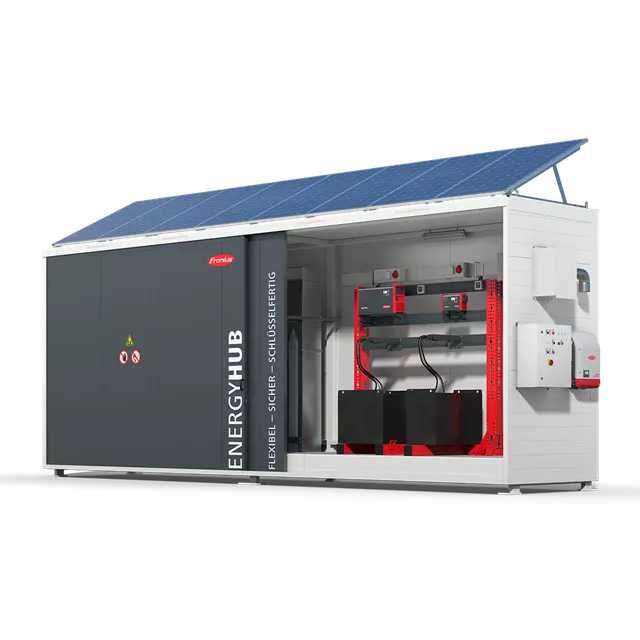

Combine with photovoltaics Save on energy costs and be cleaner and greener

Cool Battery Guide Easy Visual charge level indicator on the outside of the Energy Hub with LED strips for fast identification if the battery is fully charged, cooled and ready for use

Powerful cooling To achieve the optimum operating temperature and to increase your battery’s life

Safety sequipement Eye shower, first aid case

Awing

To keep your employees dry and be ready for all weather conditions

Battery water treatment

Battery water is expensive to buy and difficult to transport in canisters or IBCs. Create your own battery water stressless

Combine with photovoltaics

Save on energy costs and be cleaner and greener

Cool Battery Guide Easy

Visual charge level indicator on the outside of the Energy Hub with LED strips for fast identification if the battery is fully charged, cooled and ready for use

Powerful cooling

To achieve the optimum operating temperature and to increase your battery’s life

Safety sequipement

Eye shower, first aid case
